Keysight (formerly Agilent T&M) 34905A RF Multiplexer Module
Manufacturer Keysight (formerly Agilent T&M)Description

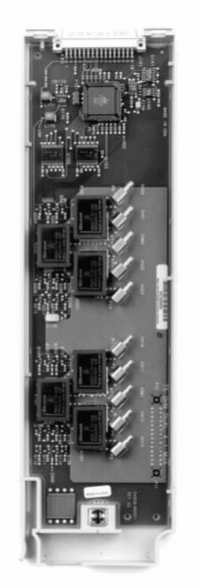

The Keysight 34905A RF multiplexer module for the 34970A/34972A Data Acquisition/Switch Unit offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies– create a stubless 16:1 multiplexer in a single frame.
Key Features
- Dual 4 Channel RF Multiplexer
- 2 GHz bandwidth, 50 Ohm
- BNC to SMB adapter cables included
Calibration
Standard calibration with a 90-day warranty included. Please contact us for additional calibration service prices.
NIST-Traceable Calibrations
Standard Calibration Price (without data): Request a Quote
ANSI Z540 Calibration Price (with as-found & as-left data): Request a Quote
ISO/IEC 17025:2005 Accredited Calibration Price (with data & uncertainties): Request a Quote
ANSI Z540.3 with data & uncertainties and Guardbanding: Request a Quote
Test & Measurement Equipment Repair Services: Request a Quote
